Mecanum wheels PLM Series
PLM series omni wheels are a 90-degree economy middle load omni wheel. There are 2 copper-based slide bearings in the driven wheel. It is aimed to supply the wheels with high precision, high economy and high endurance to customers. PLM series omni wheel use polyurethane rollers and integrated molding process hub, meanwhile they have various mounting dimensions to satisfy different applications.
| Product |
 Mecanum wheel PLM10 |
Mecanum wheel PLM15 |

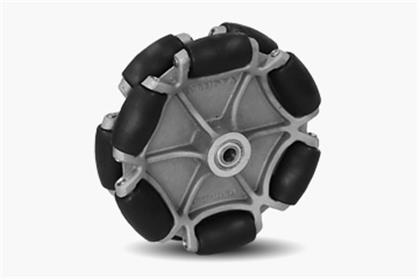

Mecanum wheel PLM20 |
| Diameter(mm) | 203.2(8") | ||
| Wide(mm) | 68 | ||
| Wheels | 12 | ||
| Bearing | 24 | ||
| Bearing Type | Copper Sliding Bearing | ||
| Wheel Material | Polyurethane | ||
| Hub Material | Aluminum | ||
| Hub Surface Treatment | No Treatment | ||
| Mount | Flat key/Hexagon Hole/Set Screws/Bearing supports | ||
| Typical Middle Hole Size(mm) | 8/9/10/12/15/17/20 | ||
| Weight(g) | 1700 | ||
| Load(kg) | 80 |
- High economy: PLM series omni wheel have better quality and economical , it can be used for wild application because of its cost-effective .
- Integrated aluminum molding process hub: A whole structure without connections is high precise, durable, high intensity, high stiffness , strong load capacit.
- Industrial Copper-based sliding bearings: Low Sliding friction resistance, high precision ,strict consistency, high reliability.
- High quality polyurethane roller: The roller use imported polyurethane materials, which make the roller wearproof and pressure proof.
- Reliable, long lifetime, stable quality.
