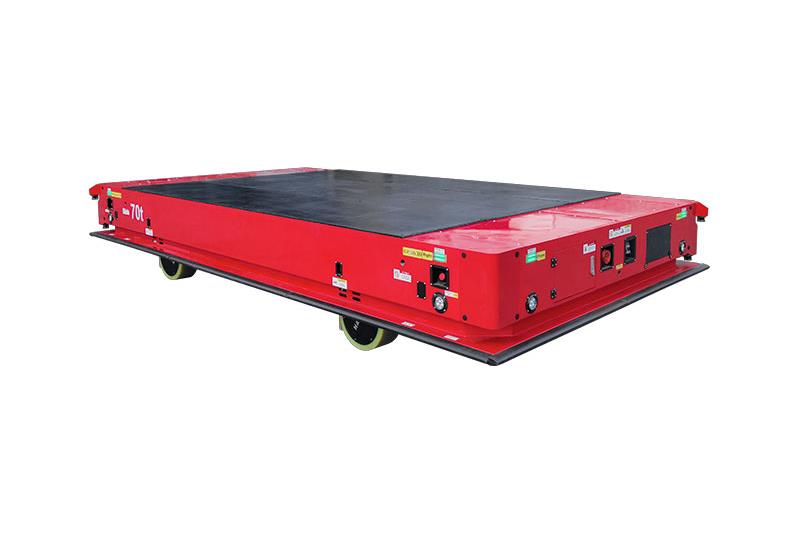

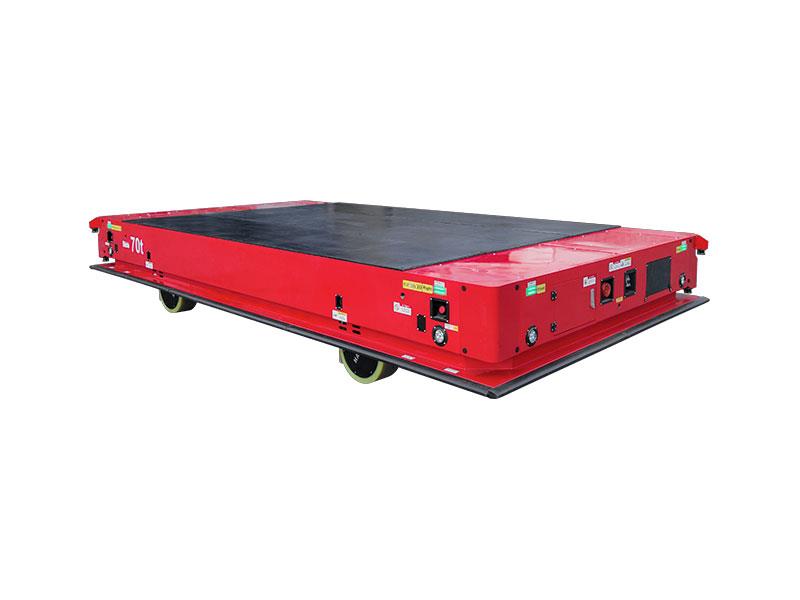

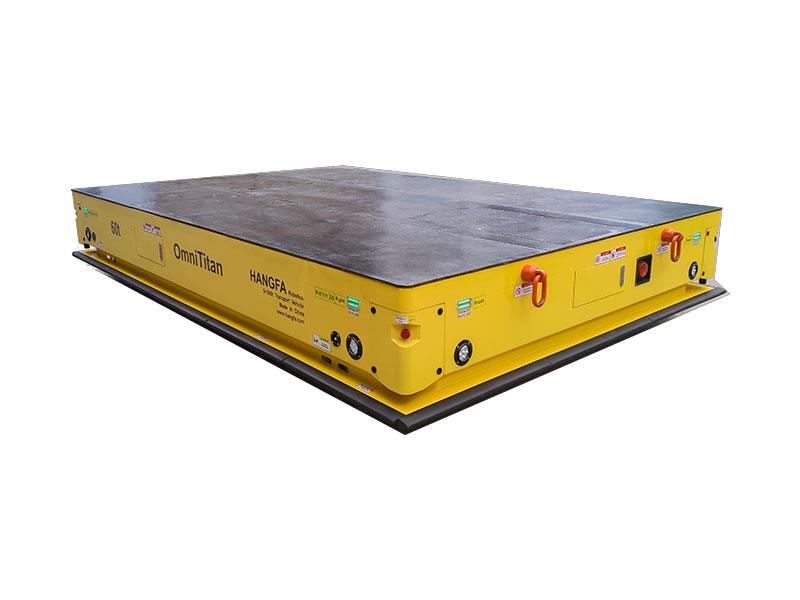

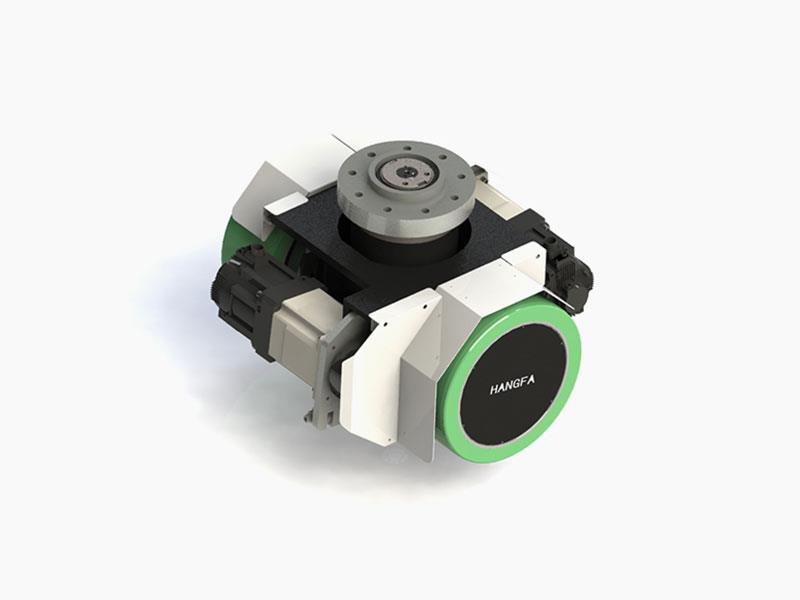

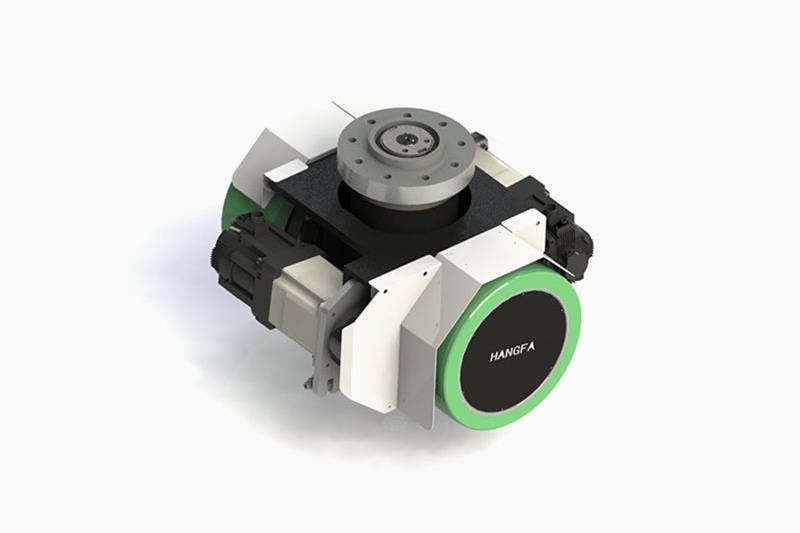

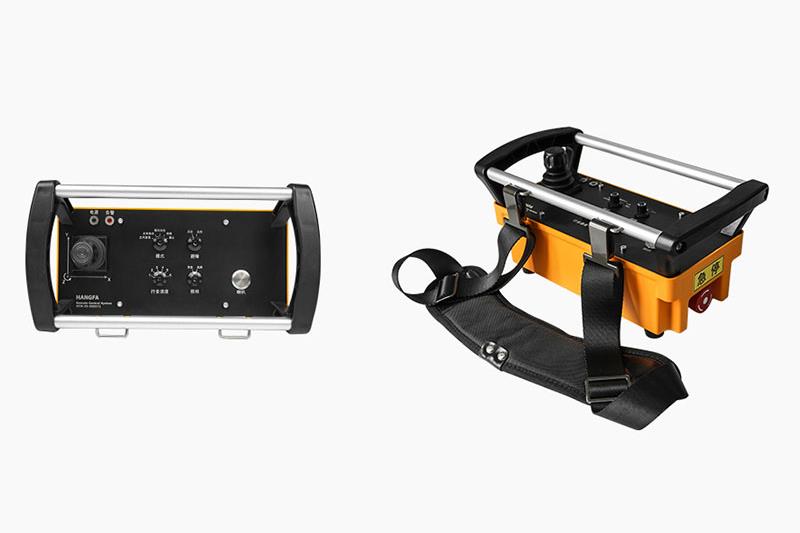

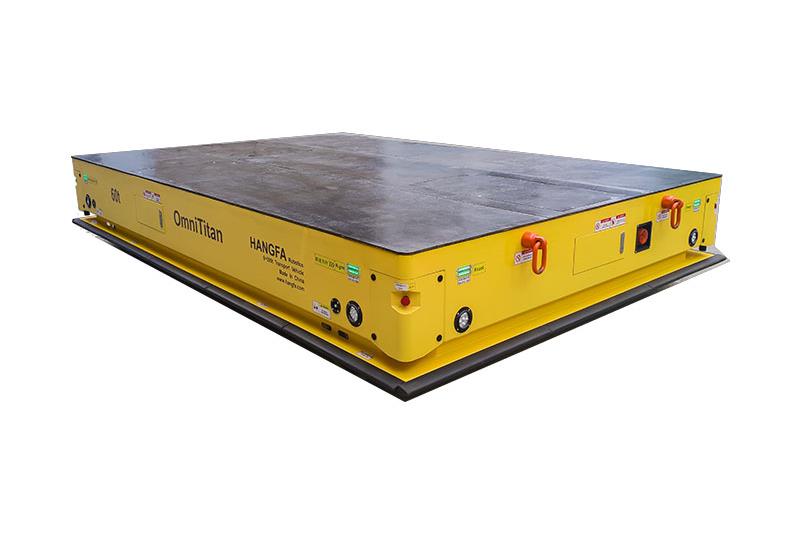

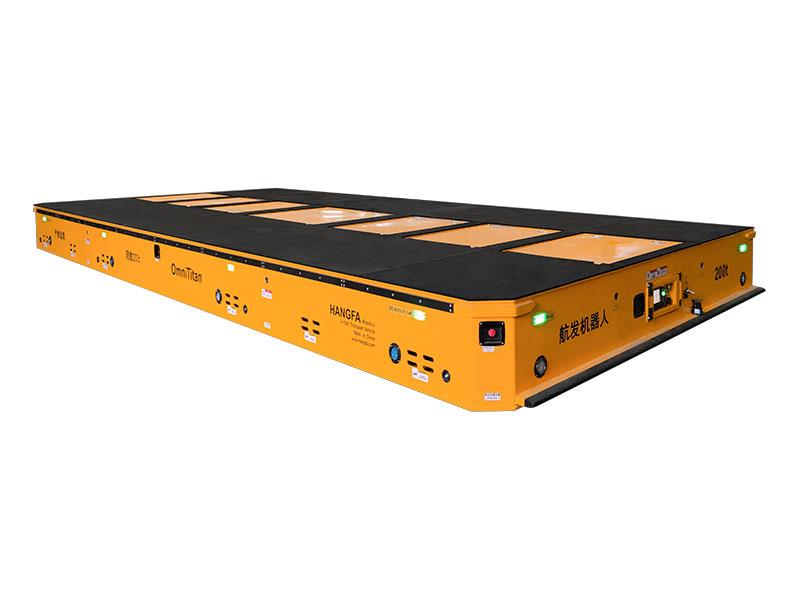

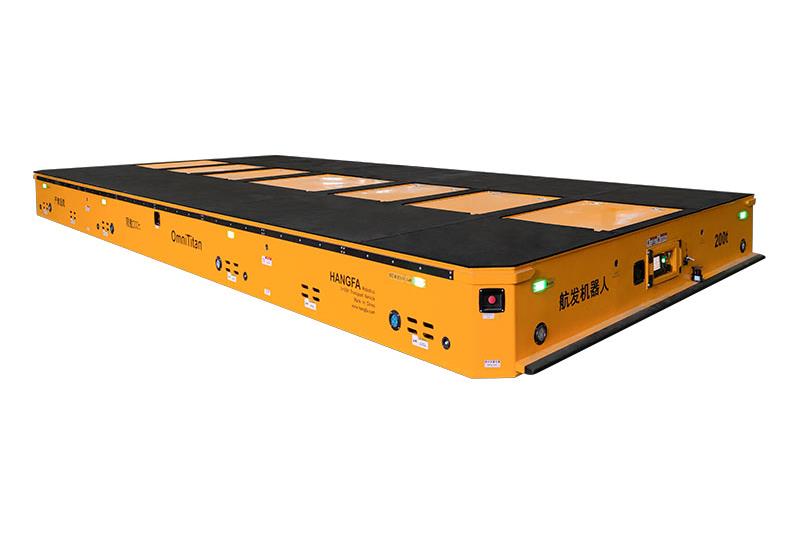

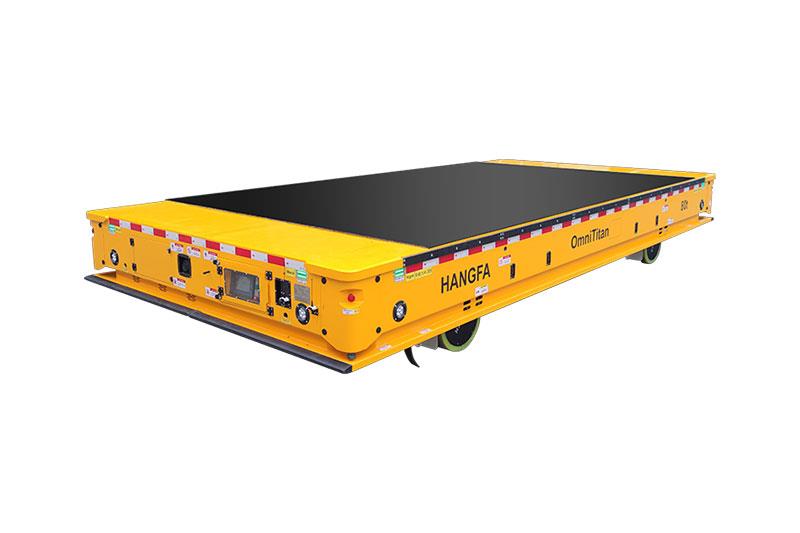

Omni-Titan 0-500t self elevating transporter

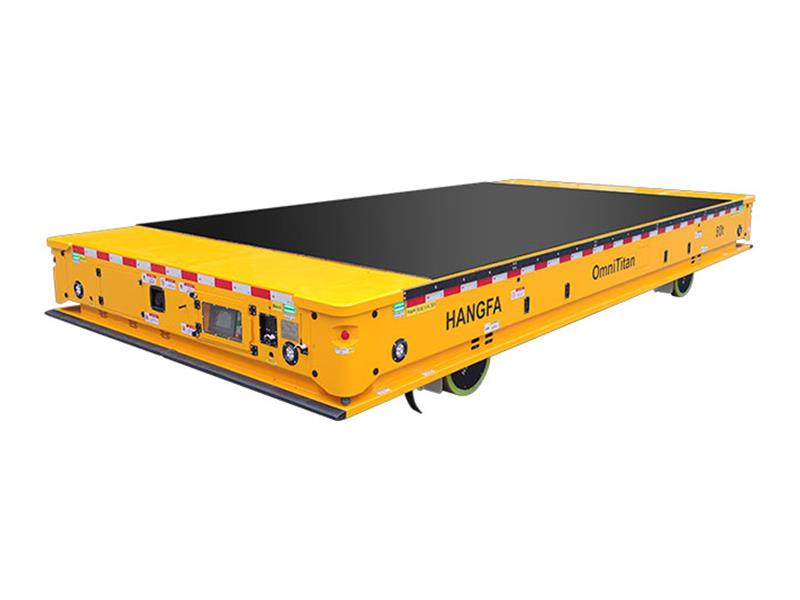

Omni-Titan series transporters provide a load capacity of 0~500t for a single unit, and are especially suitable for the transportation of large-size and large-tonnage workpieces. It can be operated on self-leveling concrete steel plate and hard ground and has strong adaptability to ground conditions. As it has its own self-elevating function in addition to being used for directly carrying workpieces, it can also be used to indirectly carry workpieces by drilling into the workpiece frame and carrying out self-elevating after lifting the workpiece frame. Upon request multiple OmniTitan transporters can be synchronized for lifting oversized parts remotely controlled or as a fully automated AGV transport system.

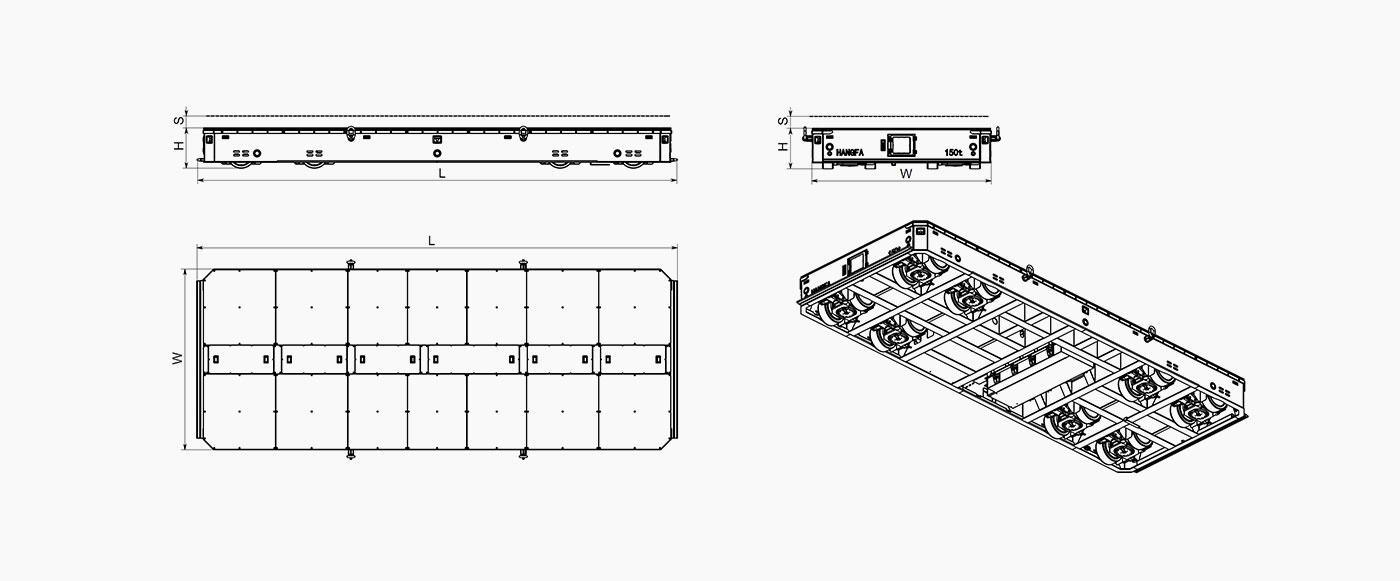

Technical drawing Omni-Titan

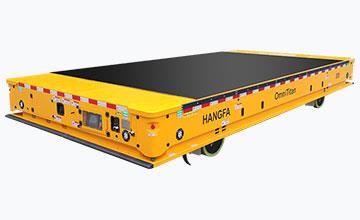

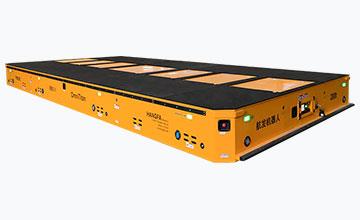

Omni-Rhino transportation robot: specifications
| Model No | TA24 | TA40 | TA60 | TA80 | TA100 | TA150 | TA200 | TA250 | TA300 | TA180 | TA270 | TA360 | TA450 | TA540 | TA720 | TB80 | TB120 | TB160 | TB160 | TB240 | TB320 | TB400 | TB480 |
| Length mm(L) | 3000 | 4000 | 5000 | 6000 | 5500 | 6500 | 7500 | 9000 | 11000 | 6000 | 7000 | 8500 | 10000 | 12000 | 16000 | 4000 | 5000 | 6000 | 5000 | 6500 | 8000 | 9000 | 10000 |
| Width mm(W) | 1700 | 2000 | 2500 | 3000 | 2000 | 2400 | |||||||||||||||||
| Height mm(Low State Hmin) | 450 | 530 | 670 | 770 | 320 | 420 | |||||||||||||||||
| Lifting Mode | Transporter Frame Lifting | Transporter Frame Lifting | |||||||||||||||||||||
| Suspension/Transoporter Self-lifting Stroke mm(S) | 150 | 200 | 80 | 100 | |||||||||||||||||||
| Load Capacity | |||||||||||||||||||||||
| Maximum Total Weight t | 24 | 40 | 60 | 80 | 100 | 150 | 200 | 250 | 300 | 180 | 270 | 360 | 450 | 540 | 720 | 80 | 120 | 160 | 160 | 240 | 320 | 400 | 480 |
| Maximum Net Weight t | 3 | 5 | 6 | 7 | 8 | 12 | 16 | 22 | 28 | 15 | 20 | 27 | 35 | 43 | 60 | 4 | 6 | 8 | 6 | 9 | 12 | 16 | 20 |
| Rated Load Capacity t | 20 | 30 | 50 | 70 | 80 | 120 | 160 | 200 | 240 | 140 | 200 | 270 | 340 | 400 | 500 | 70 | 110 | 150 | 150 | 225 | 300 | 375 | 450 |
| Power Source | |||||||||||||||||||||||

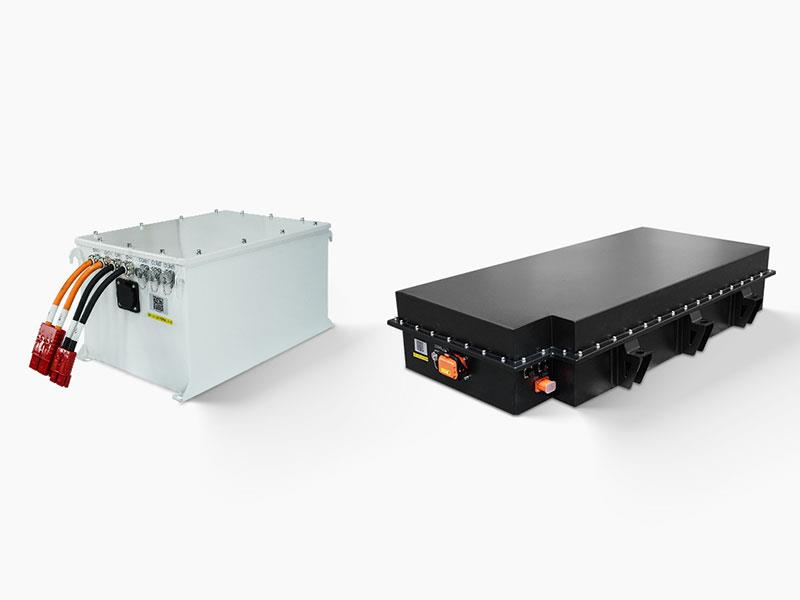

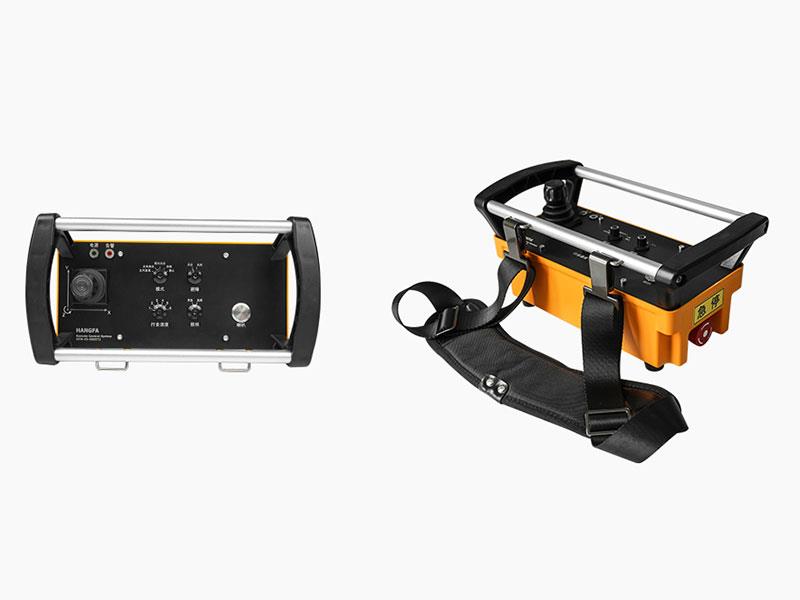

| Battery Type | Lithium iron phosphate battery | Lithium iron phosphate battery | |||||||||||||||||||||
| Battery Capacity kWh | 10 | 25 | 30 | 60 | 90 | 55 | 110 | 170 | 220 | 10 | 20 | 25 | 60 | 90 | |||||||||
| Typical Battery Endurance | 12h(Customizable according to customer's requirement) | 12h(Customizable according to customer's requirement) | |||||||||||||||||||||
| Full Discharge Charging Time | 8h(Customizable for fast charging) | 8h(Customizable for fast charging) | |||||||||||||||||||||
| Charger Power Supply | AC220V/AC380V | AC220V/AC380V | |||||||||||||||||||||
| Driving Unit | |||||||||||||||||||||||
| Number of Driving Units | 4 | 4 | 6 | 8 | 4 | 6 | 8 | 10 | 12 | 4 | 6 | 8 | 10 | 12 | 16 | 4 | 6 | 8 | 4 | 6 | 8 | 10 | 12 |
| Unit Model No | A06 | A10 | A25 | A45 | B20 | B40 | |||||||||||||||||
| Wheel Diameter mm | 250 | 310 | 457 | 500 | 250 | 310 | |||||||||||||||||
| Unit Rated Load Capacity t | 6 | 10 | 25 | 45 | 20 | 40 | |||||||||||||||||
| Motor Type | AC motor | AC motor | |||||||||||||||||||||
| Suspension /Self-lifting Type | Hydraulic independent type | Hydraulic independent type | |||||||||||||||||||||
| Maximum Ground Pressure | 10Mpa | 15Mpa | |||||||||||||||||||||
| Movement Features | |||||||||||||||||||||||
| Minimum Turning Radius | 0m | 0m | |||||||||||||||||||||
| Full Load Maximum Moving Speed | 0-30m/min | 0-20m/min | |||||||||||||||||||||
| Full Load Slope Moving Speed | 0-20m/min | 0-10m/min | |||||||||||||||||||||
| Lifting Speed | 60-200mm/min | 60-200mm/min | |||||||||||||||||||||
| Moving Adjustable Accuracy | ±2mm | ±2mm | |||||||||||||||||||||
| Lifting Adjustable Accuracy | ±1mm | ±1mm | |||||||||||||||||||||
| Environment Condition | |||||||||||||||||||||||
| Applicable Ground | Concrete, self leveling, steel plate flooring, etc | Concrete, self leveling, steel plate flooring, etc | |||||||||||||||||||||
| Full Load Climbing Ability | 5% | 3% | |||||||||||||||||||||
| No Load Climbing Ability | >20%(Interference between the ground and the transporter frame needs to be considered) | >10%(Interference between the ground and the transporter frame needs to be considered) | |||||||||||||||||||||
| Protection Level | IP54 | IP54 | |||||||||||||||||||||
| Working Environment | Temperature:-15~+45?;Humidity:0~95%,no condensation | Temperature:-15~+45?;Humidity:0~95%,no condensation | |||||||||||||||||||||
| Storage Environment | Temperature:-20~+50?;Humidity:0~95%,no condensation | Temperature:-20~+50?;Humidity:0~95%,no condensation | |||||||||||||||||||||
| Others | |||||||||||||||||||||||
| Control Mode | Remote control operation/automatic navigation/receiving communication instructions from the upper computer for control | Remote control operation/automatic navigation/receiving communication instructions from the upper computer for control | |||||||||||||||||||||

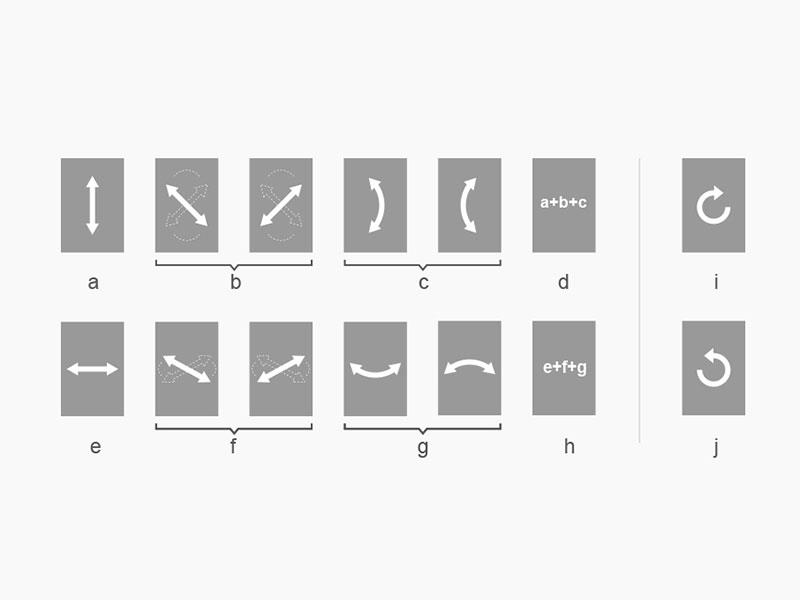

| Movement Function | Straight movement, diagonal movement, lateral movement, rotation, turning, etc. For details, please refer to the chapter on the introduction of movement modes. | Straight movement, diagonal movement, lateral movement, rotation, turning, etc. For details, please refer to the chapter on the introduction of movement modes. | |||||||||||||||||||||
| Weight Measurement Function | Weight measurement, center of gravity position measurement, overload alarm, eccentric load alarm | Weight measurement, center of gravity position measurement, overload alarm, eccentric load alarm | |||||||||||||||||||||
